The Zeetex ZDR max is a drive axle tyre designed for high mileage, durability, and confident handling. Tie-bars enhance tread stability and reduce irregular wear, while its wide tread and deep grooves extend mileage and improve wet traction. Optimized groove angles and transverse grooves provide precise handling and reliable grip.

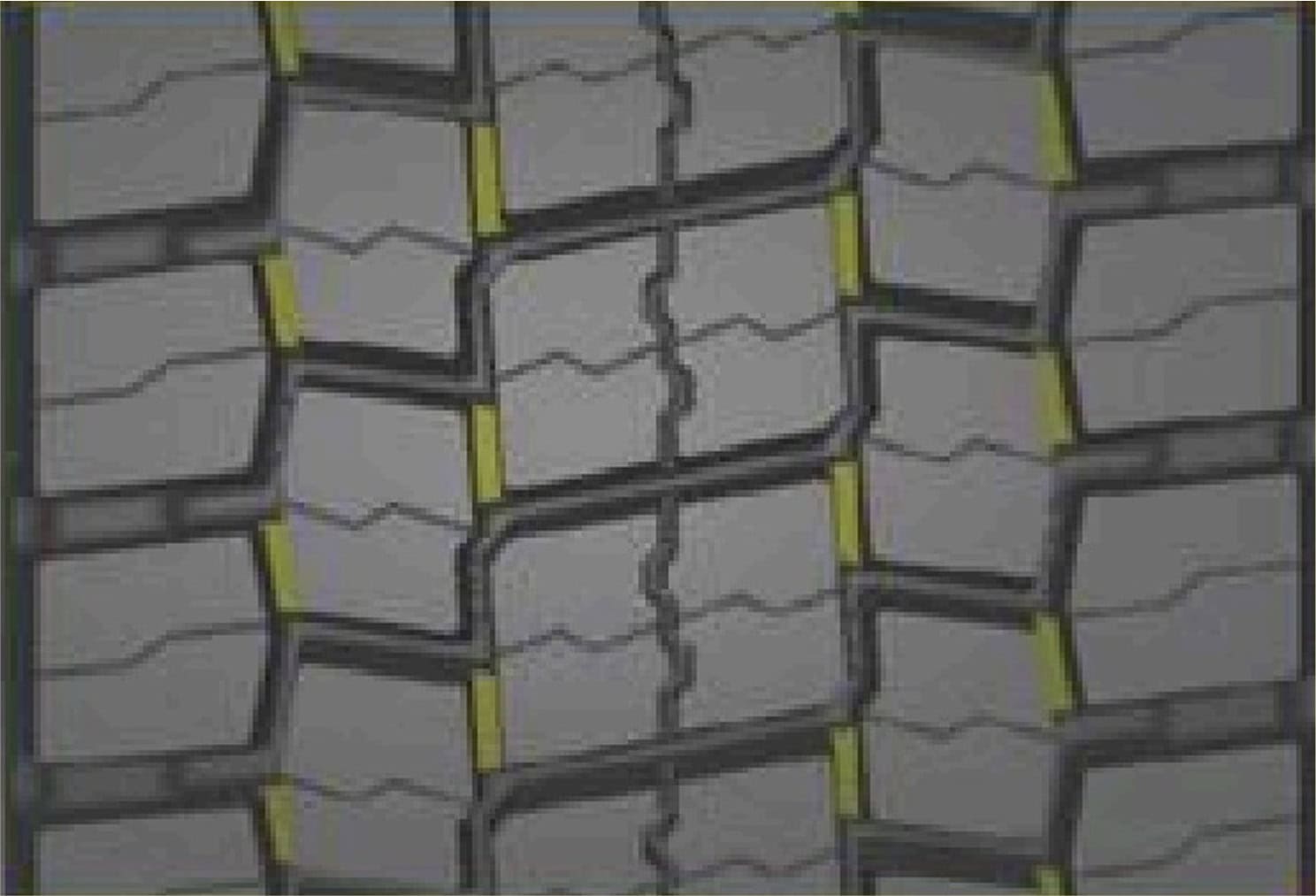

The tie-bars between the pattern blocks help improve tread stability and reduce heel to toe wear.

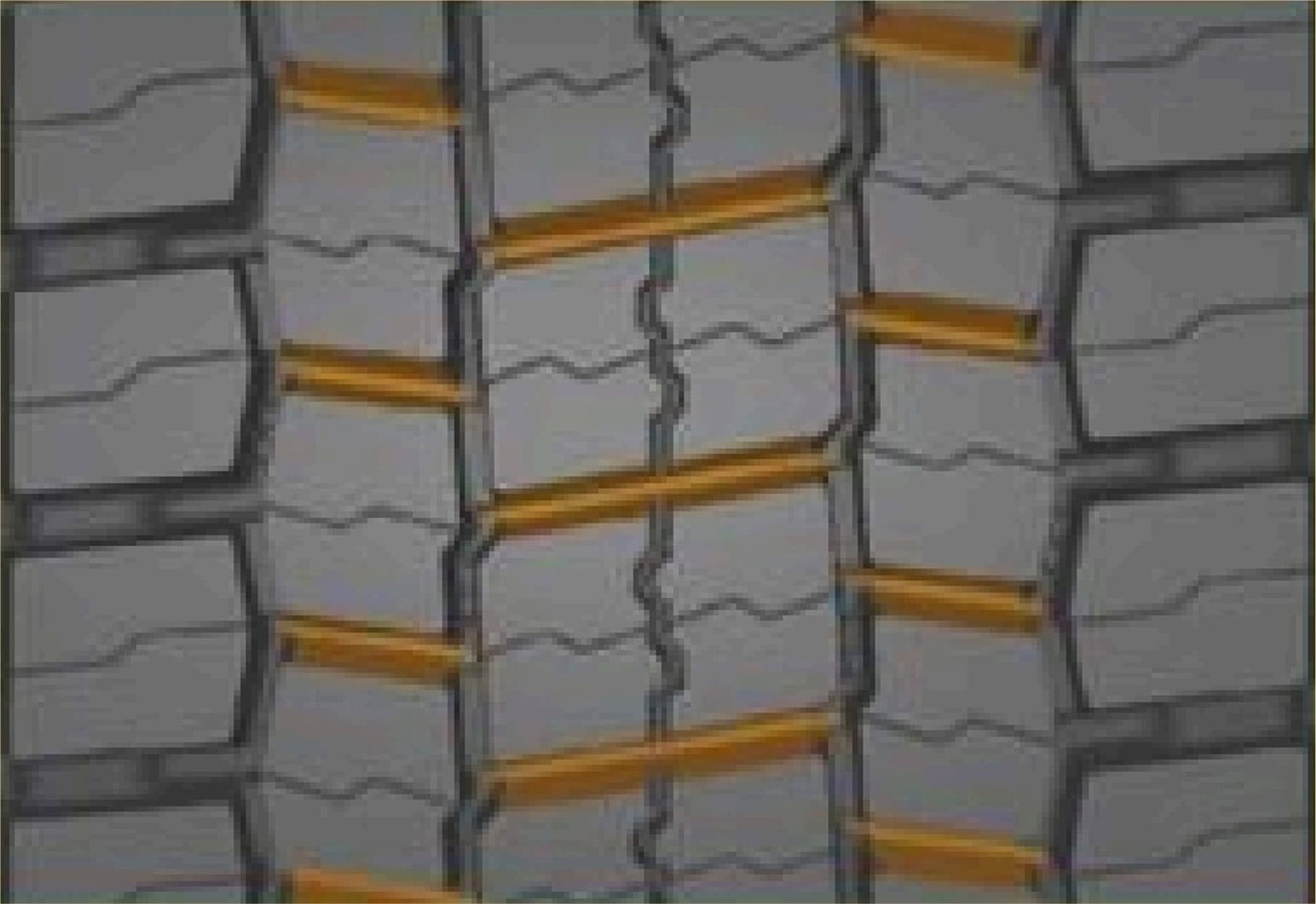

Full-depth horizontal grooves can quickly drain water out of the main groove, improving traction and performance.

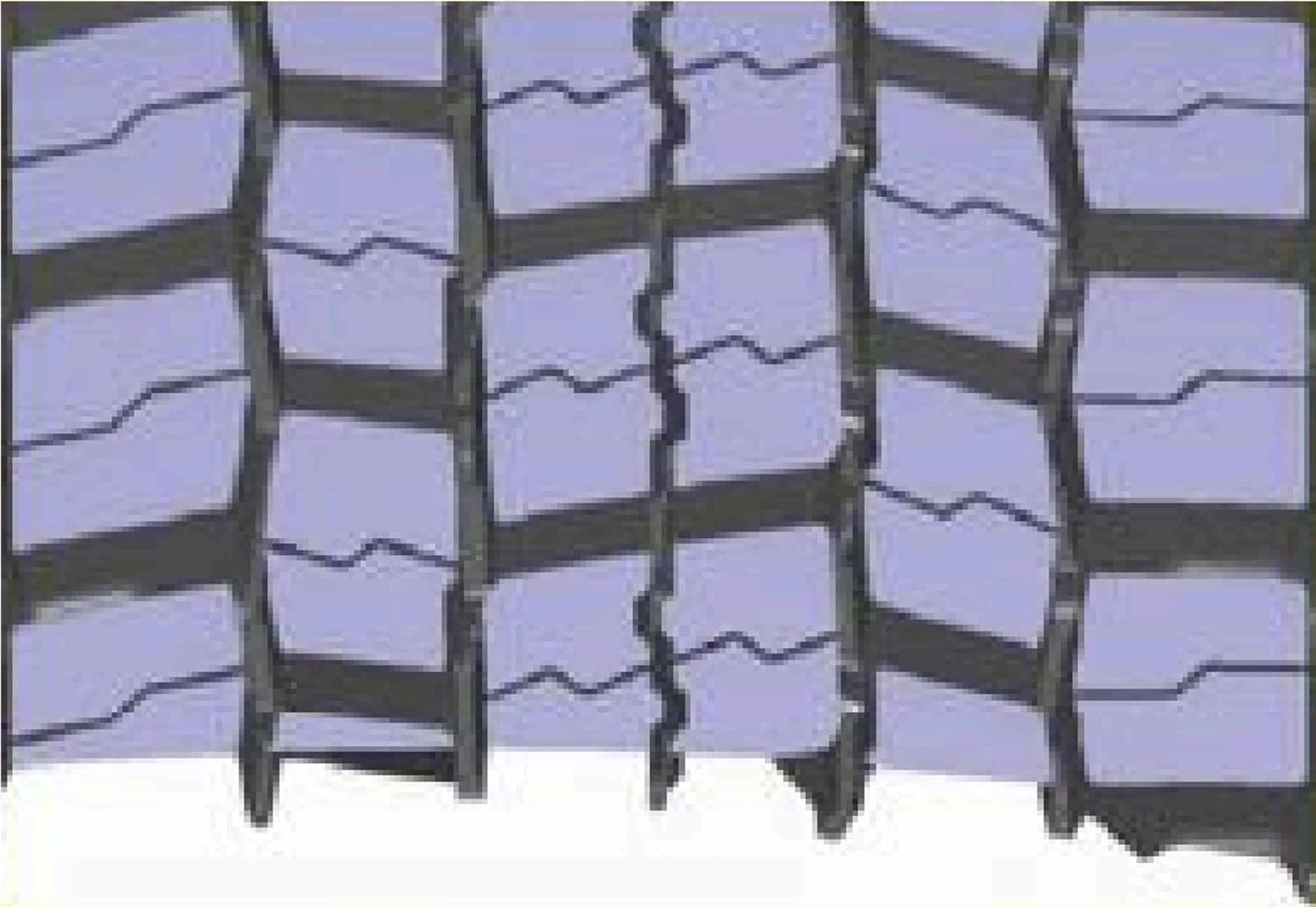

Wide tread and deep main groove provide excellent mileage performance.

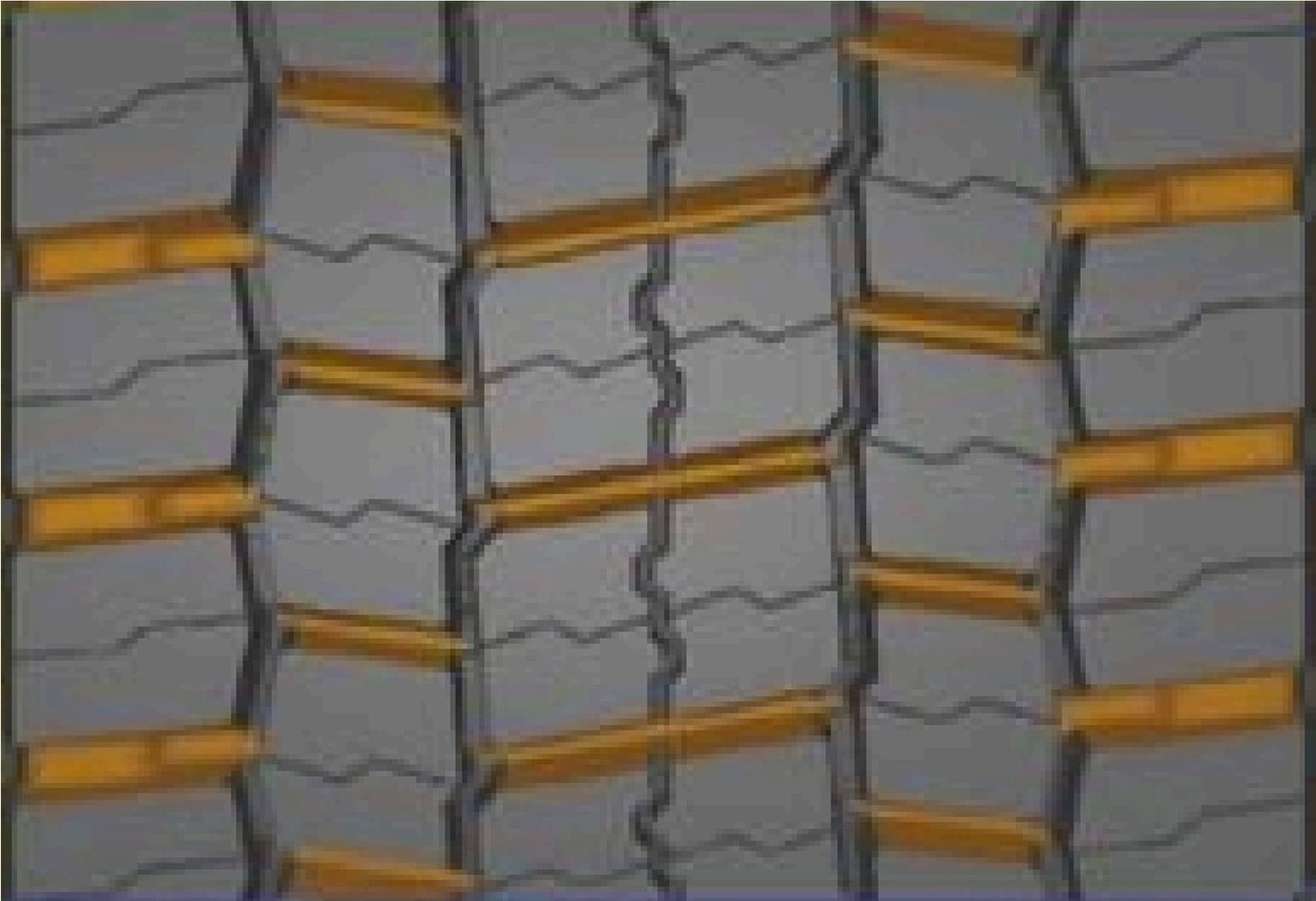

Optimized pattern groove angle design improves handling performance.
| Size | PR | Load Index | Maximum Load Single | Maximum Load Dual | Max Inflation Pressure | Rim Width | Section Width | Overall Diameter | Tread Depth |
|---|---|---|---|---|---|---|---|---|---|
| kgs | kgs | psi | inches | mm | mm | mm | |||
| 215/75R17.5 | 16 | 126/124 | 1700 | 1600 | 102 | 6.0 | 211 | 767 | 15.0 |
| 235/75R17.5 | 16 | 132/130 | 2000 | 1900 | 112 | 6.7 | 233 | 797 | 16.0 |
| 265/70R19.5 | 16 | 140/138 | 2500 | 2360 | 112 | 7.5 | 262 | 867 | 16.0 |
| 295/80R22.5 | 18 | 152/148 | 3550 | 3150 | 123 | 9.0 | 298 | 1044 | 20.0 |
| 315/70R22.5 | 18 | 154/150 | 3750 | 3350 | 131 | 9.0 | 312 | 1014 | 21.0 |
| 315/80R22.5 | 20 | 156/150 | 4000 | 3350 | 123 | 9.0 | 312 | 1076 | 21.0 |
